EK-RES X3 400
Details

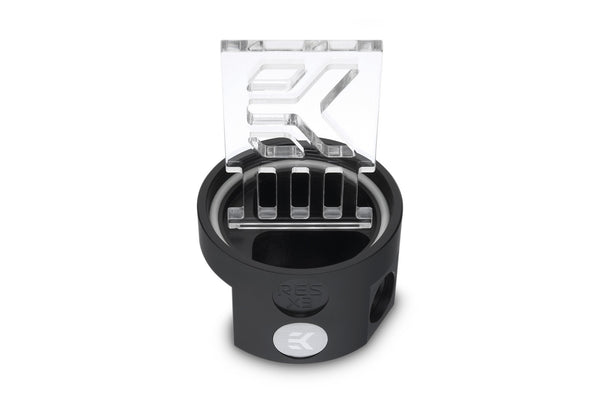

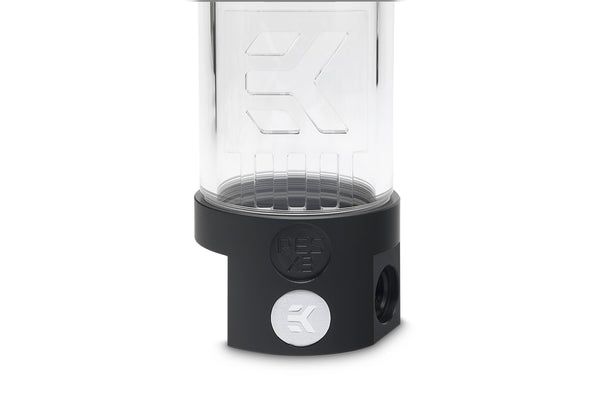

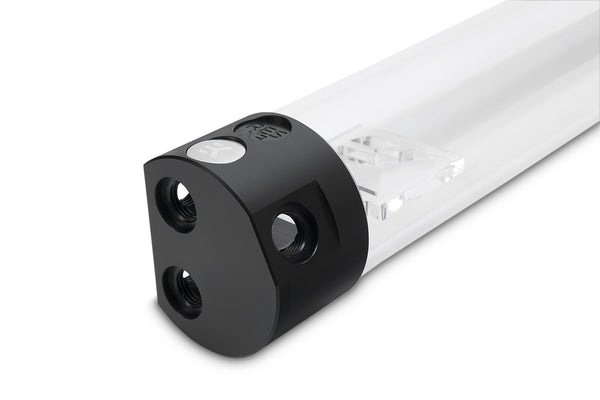

The EK-RES X3 reservoir from EK CSQ design line is an improved version of renown EK-Multioption RES X2 reservoirs released three years ago. Compared to EK-Multioption RES X2 product line the EK-RES X3 reservoirs feature improved inlet/outlet port configuration for easier and more straightforward fitting configuration and tube routing. Improvements have been made on the reservoir's bottom terminal which has been optimized for best flow. Vortex ouccurance has also been diminished by the use of enclosed anti-cyclone as well as additional PE foam.
All these new features result in easier-than-ever mounting, filling and quickest bleeding of air.

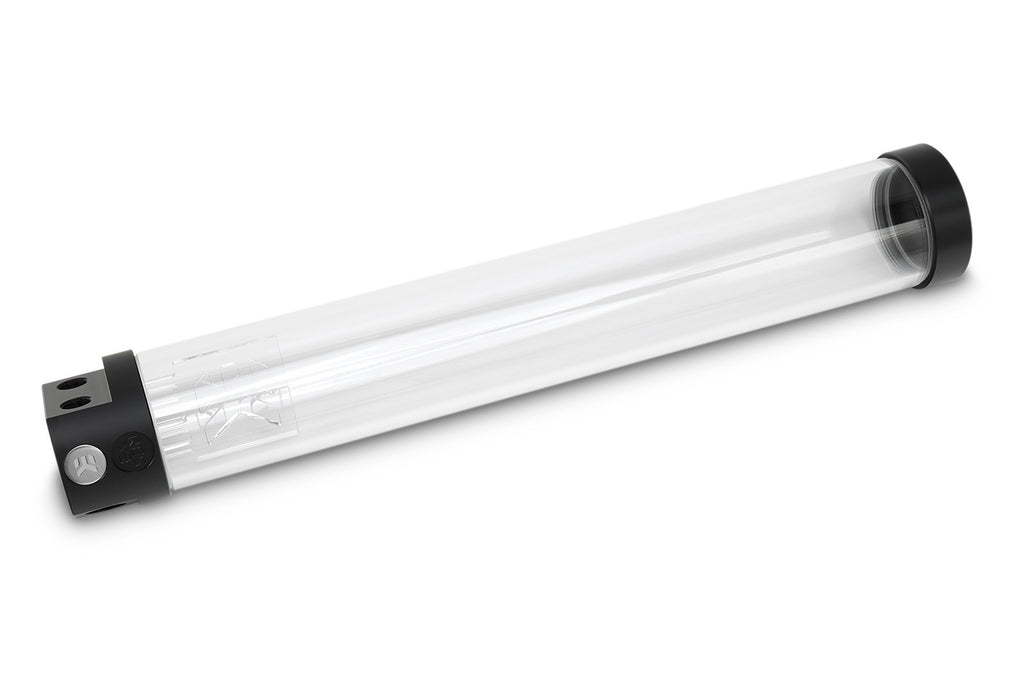

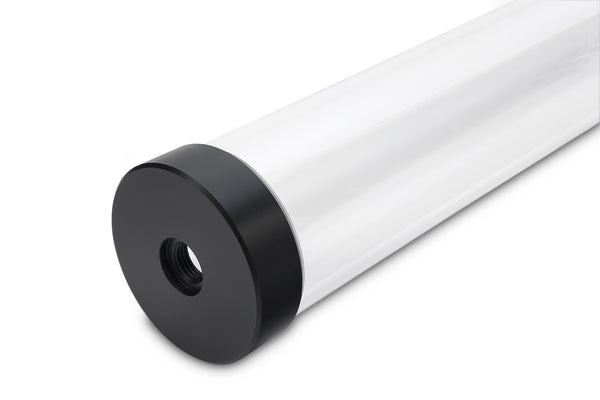

Reservoir is manufactured of premium quality 60mm acrylic tube and POM Acetal end caps. The sealing is performed by quality EPDM rubber washers.
New RES X3 comes with a pair of EK design reservoir holders using adjustable fastening force controlled by enclosed Allen key.

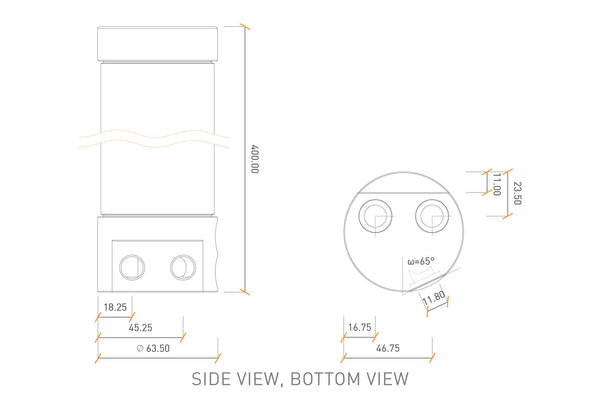

Technical data:
- Installation height: 400mm
- Diameter: 60mm
- Capacity: ~820ml
- Weight (netto): 525g

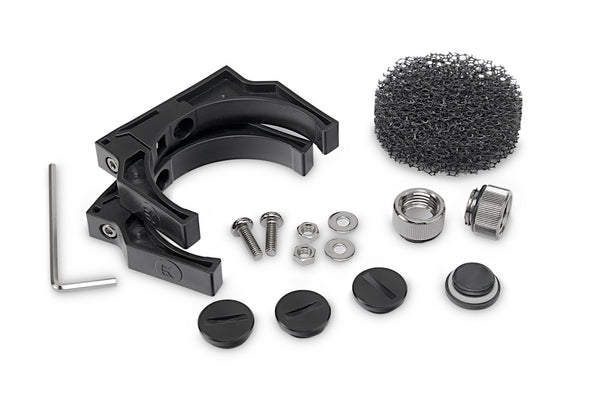

Enclosed:
- EK-Multioption RES X3
- Pair of EK reservoir holders with mounting screws
- 2 × G1/4 extenders
- 4 × G1/4 Plugs
- 1 × 6mm Allen key for plugs
- 1 × 2,5mm allen key for reservoir holders
- 1 × polyether anti-cyclon foam
